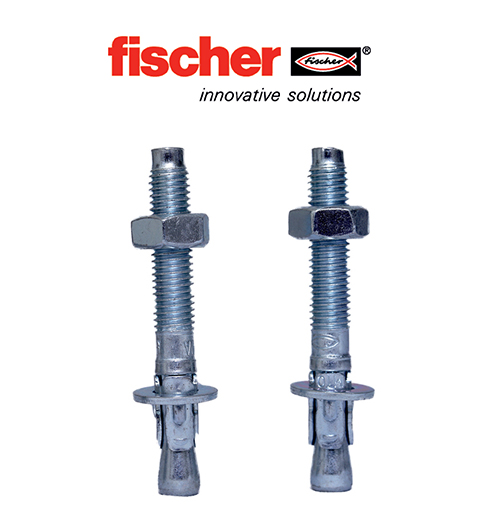

Wedge Anchor FWA (Anchor Fastener)
Wedge anchors (bolt anchors) in zinc-plated steel and stainless steel A2.
Anchor bolt for push-through installation. When the hexagon nut is tightened, the tapered bolt is pulled into the expansion clip and expands it against the hole wall.
- Thread diameter 6 to 20 mm.
- Zinc plated steel version for indoor use.
- A2 stainless steel version for outdoor use and in damp conditions.
- Suitable for: Non-cracked con crete ≥ C20/25.
- Natural stone with dense structure.
- For fixing of Steel and wooden constructions.

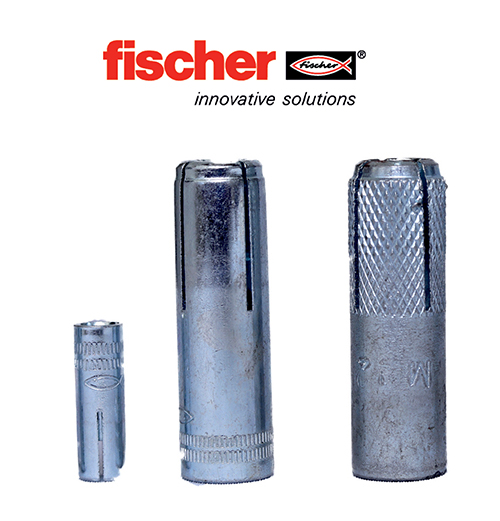

Hammerset Anchor EA-N (Bullet Fastener)
Drop-in anchor in zinc-plated steel.
- Hammerset anchor with internal thread for prepositioned installation.
- When the expander plug is driven in with EAW H setting tool, the anchor sleeve is expanded and is tensioned against the hole wall.
- Suitable for all screws or studs with metric threads.
- Low anchoring depth reduces drilling time and thus allows cost-effi cient installation.
- Surface-fl ush anchor allows the attached item to be removed and refi tted several times.
- Internal thread diameter 6 to 20 mm. J Zinc plated steel version for indoor use.
- Suitable for: J Non-cracked concrete ≥ C12/15.
- Natural stone with dense structure.
- Anchoring light ceiling linings and suspended ceilings.
- For fixing of Pipes and sprinkler systems.
- Steel constructions. J Cable trays. J Suspended ceilings.

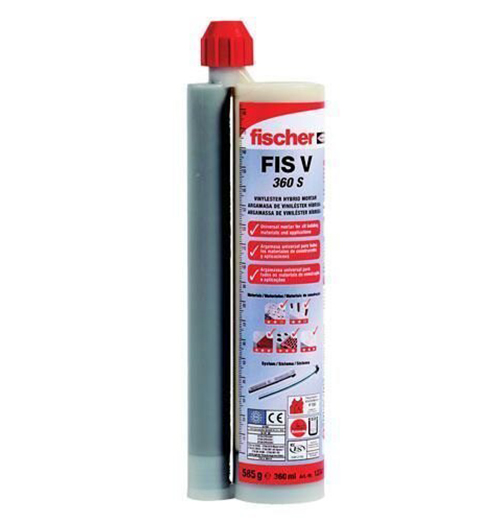

Injection Mortar FIS V
The FIS V injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for rebar connections. FIS V is thus the universal injection mortar family with guaranteed reliability for practically all areas of application.
FIS VW HIGH SPEED has a signifi - cantly shorter curing time than FIS V, thus also ensuring swift work progress even at low temperatures. ▪ FIS VS LOW SPEED with extended gelling time prevents premature curing of the mortar at higher temperatures and is ideally suited to large drill hole depths.
The FIS V is a 2-component injection mortar based on vinyl ester hybrid. ▪ Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer. ▪ The injection cartridges are quick and easy to use with the fischer dispensers. ▪ partially used cartridges can be reused, simply by changing the static mixer.
