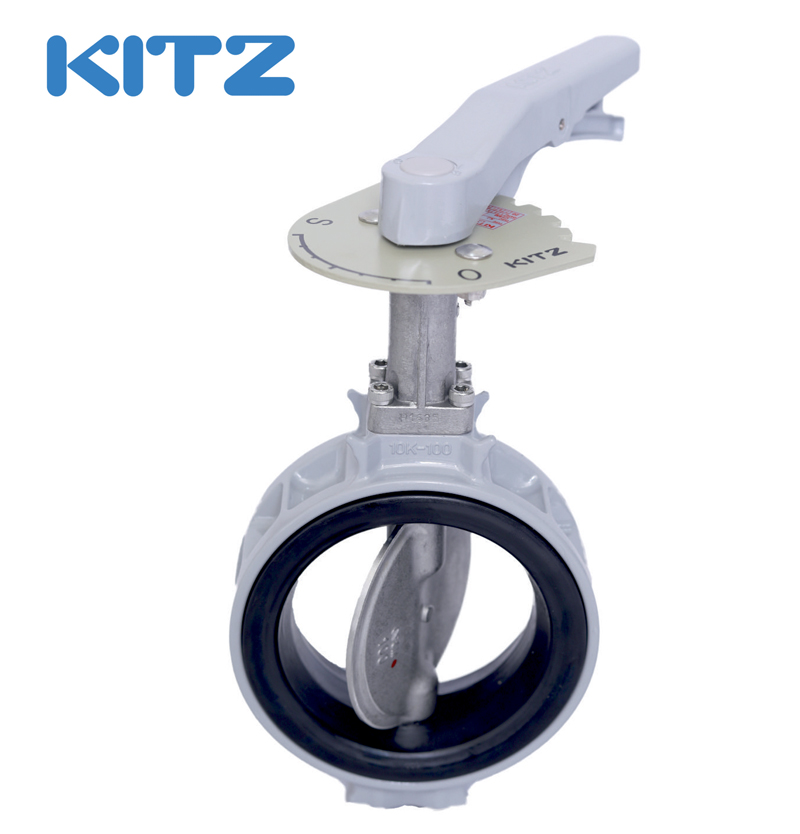

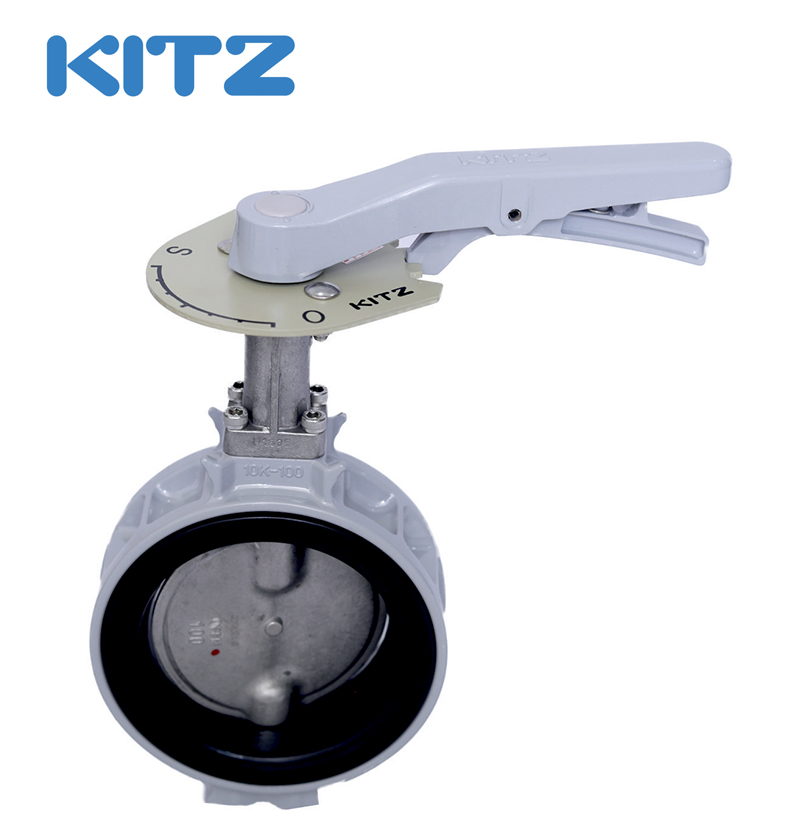

XJ Series Aluminum Butterfly Valve
Kitz make Aluminum Butterfly Valve with by default SS 316 Disc, equipped with SS 304 extended stem, EPDM Liner (conform to JIS requirement = Initial sealing ability after AT LEAST 10,000 operations) .

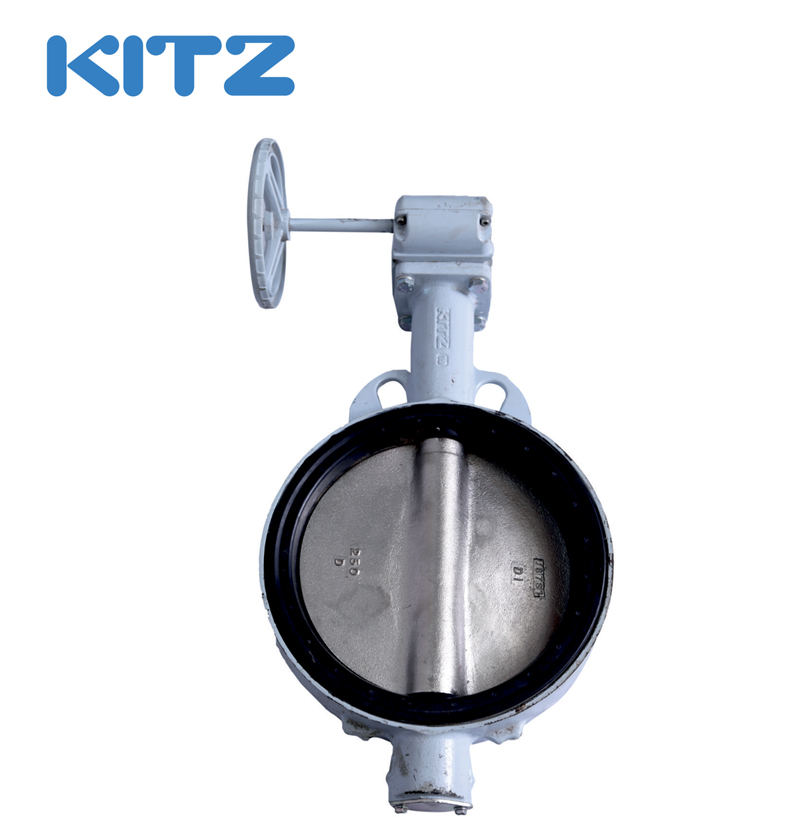

Lever and Gear operated
Available in PN 10 & PN16 rating.
Body Material & Specifications:
- Body : Aluminum Die-cast/Equivalent ASTM B85-84-383.0
- Neck : A351 Gr. Cf8
- Stem : Equivalent ASTM A276 Type 410
- Disc : A351 Gr. CF8M
- O-ring : EPDM
- Rubber Seat : EPDM
- Bottom stem : Equivalent ASTM A276 Type 410
- Bearing : Metal Backed PTFE (Size 11/2", 10"and 12")
- Polyphenylenesulfide (10XIMEA : Size 2" to 8")
- Bronze : CAC401C (PN16XJME : Size 2" to 8")
- Lever : Aluminum Die Cast
Temperature Range
- NBR (Buna-N) Seat 00C to + 700C
- EPDM Seat -200C to + 1200C
- Continues service temperature range -200C to + 1000C
Dew to Condensation Test
- Line Fluid : +50C Cold Water
- Atmospheric Temperature: +200C to + 400C
- Valve Insulation : 50 mm glass wood around the Test Valve

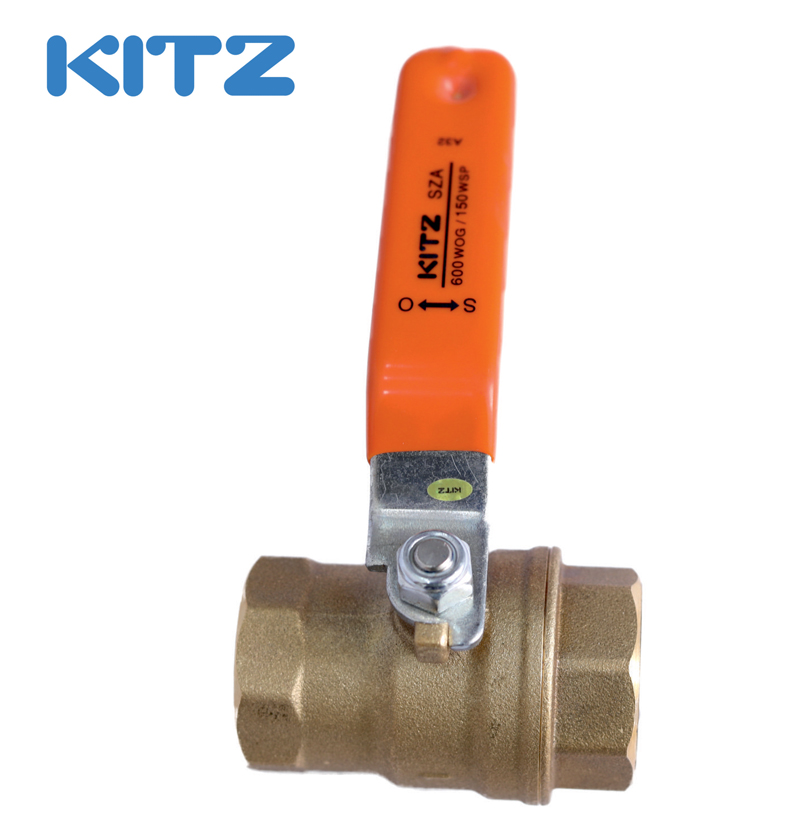

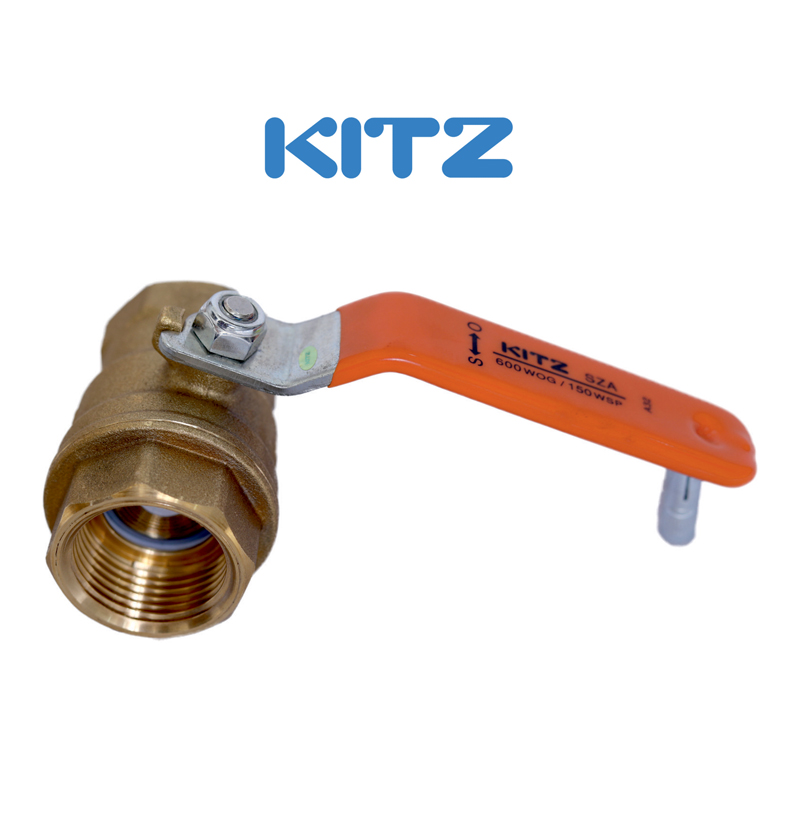

SZA Series Forged Brass Ball Valve
Kitz make forged Brass Ball Valve with by default PN 40 rating.
Size Available: DN 8 to DN 100
Kitz manufacturers their own designed valves in their own factory in Thailand.
Double O-Ring Stem Seal FKM (Viton) Double -O-Ring=Perfect Stem
Seal (Local products us PTFE packing, which cause easily leaking)
Specified JIS/ASTM Brass Material ASTM B283 C37700
(Not Chinese brass material)
- Body : Forged Brass (B283 No. C37700) / Cast Bronze (BS 584 no. C84400)
- Body Cap : Forged Brass (B283 No. C37700)/Cast Bronze (BS 584 no. C84400)
- Stem : Brass Rod
- Ball : Forged Brass (Chrome Plated)
- Handle : Cast Steel
- Handle Nut : Cast Steel
- O-ring : FKM
- Ball Seat : PTFE
Three Types of end connection Design
- Bs21 threaded end connection
- NPT threaded end connection
- Solder joint end connection
All Sizes rated 600 WOG/150/WSP (400 WOG for 4)
Two Piece Constructions
Blow out -proof system
Application: Water, Oil, Gas and Steam
